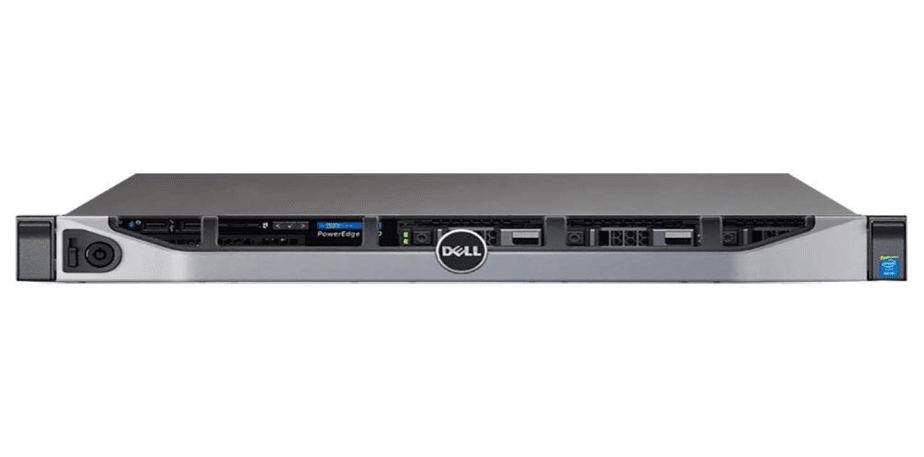

Server 630

Description

Component Specification Form Factor 1U Rack Server Processor Up to 2 × Intel Xeon E5-2600 v3/v4 series Max CPU Cores Up to 44 cores (2 × Xeon E5-2699 v4, 22 cores each) Memory Slots 24 DDR4 DIMM slots Maximum RAM Up to 1.5 TB DDR4 ECC RDIMM/LRDIMM RAM Speed 2133 MHz or 2400 MHz (depending on CPU) Drive Bays 8 × 2.5" or 10 × 2.5" SAS/SATA/SSD RAID Controller PERC H330, H730, H730P, HBA330 Storage Support SAS, SATA, SSD Network 4 × 1GbE (optional 10GbE NIC) PCIe Slots Up to 3 × PCIe Gen3 Power Supply Dual Hot-Plug PSU (495W, 750W, 1100W, or higher depending on configuration)
